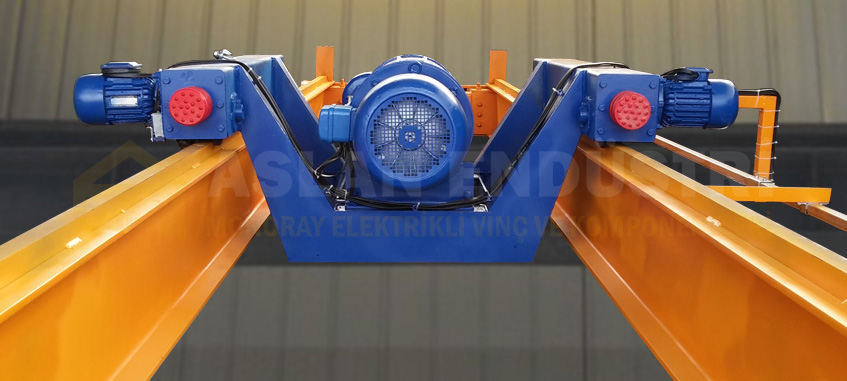

Low Headroom Overhead Traveling Cranes
The low-headroom overhead crane lifting unit moves forward and backward on the main beam, and also performs material lifting and transportation operations by moving the bridge back and forth on the rail and operates in two different speed modes. Generally, the used speed mode is normal speed mode and is suitable for many applications. It also works in slow mode for precise lifting and handling. Low-headroom overhead cranes; It is widely used in mechanical production workshops, product assembly line, warehouse and cargo areas. Control can be done by manual control or remote control.
Technical Specifications
| LIFTING CAPACITY (ton) | 1 | 2 | 3 | 5 | 10 | 16 | 20 | 32 | 50 |
|---|---|---|---|---|---|---|---|---|---|
| LIFTING HEIGHT (m) | 3-9 | ||||||||
| LIFTING SPEED (m/min) | 8 / 0.8 | ||||||||
| TRAVELING SPEED (m/min) | 20 | ||||||||
| POWER SUPPLY | 380 V, 3 PHASE, 50 Hz | ||||||||
| CONTROL TYPE | Manual / Remote Controller | ||||||||
How to Order
Specify your lifting capacity and lifting height requirement for the order first. Determine whether you need normal and slow double speed according to the material you will lift and transport. Call us after determining the height of the hatch that the low headroom overhead traveling crane will work. Our expert team will recommend the most suitable low headroom overhead crane system for you.
